This page is about a device that plays mp3 files from a CDROM. It's a
transformed
Intel-based PC running Linux and rxcontrol, with an LCD and keypad. I made
this device in 1998 for my own pleasure. Please consider that since then
many commercial devices have hit the market, and this may render now the
construction of such a device less interesting, but back then this wasn't
the case. Nevertheless you may profit from my efforts into building something
that really satisfies your needs.
The name is pronounced MP3-O-PHONO. PHONI is the greek for VOICE
I'm giving infomation here for people wishing to build their own devices. I'm
not willing to build mp3 players for anyone cause I have no time :-) but I would
be happy to answer questions about my construction. You can contact me
by email at
sivann at softlab.ece.ntua dot gr
Please don't ask me questions about learning/installing linux,
hardware prices, cpu performance, paint quality e.t.c. Please read these pages
and the rxcontrol's documentation careful before asking questions.
Please consider that you must already be good at linux/unix before
attempting to construct this!
Thank you, and good luck.
Spiros Ioannou
Features
- Menu driven interface leads to only 9 front-panel keys
- LCD green backlit, 20 columns x 4 lines
- Supports standard functions such as play,stop,pause,FF,FREV,next,prev,
go to first
- FF (Fast forward) and FREV have adjustable length and time intervals
- File selection modes: select current, select all, select randomly
- Playlist support: saves playlists to HD.
- Playlists are editable and can be re-ordered
- File selection from HD and CDROM (automounted)
- While browsing the filesystem to add files, the display is fully
scrollable. Only mp3 files and directories are shown.
- Directories can be added to a playlist recursively
- Hot key to upgrade software from diskette
- Infra Red (IR) support implemented to both play functions &
menu navigation
- Repeat toggle button
- Mute toggle button
- Optional volume control (+/-) buttons
- LCD Displays time left, time elapsed & time progress bar
- Song title & artist are guessed from filename or read from the ID3 tag
if the latter exists.
- Title and artist autoscroll left<->right if they don't fit on the display
- Scroll interval and step are configurable
- Welcome message at startup
- All keypad and IR keys are configurable
- Written totally in C so it's fast, robust, and memory efficient
- LCD routines written in C for fast and flicker-free lcd updates
- Not intended for the linux newbie!
- total cost 50$ (for the lcd) if you have the spare parts
News
- xaudio version 1.0.5 seems to handle Xing's VBR correctly :-)
- Scanned 2 articles from a greek and an english mag about mp3ophono!
- Version 1.7 and 1.8b are out. Check the changelog at the DOWNLOAD section
-

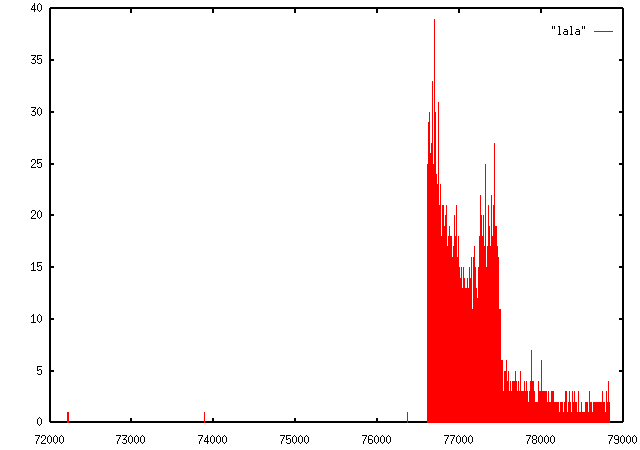

This site has been
slashdotted!
Have a look
at the hits/min after the publish
X-axis is time. (made with gnuplot)
Press
You may find them here
